[4 pc] TC4422CAT TC4422 FET/MOSFET/IGBT Power Driver, peak 9A NON

Original Electronic Components
TC4422CAT
Lot size: 4

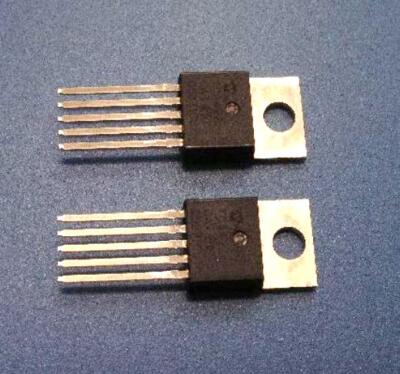

Case: TO220
Power Gate Driver for MOSFET / IGBT 9 A drive current, Turns FET full On
Genuine components from USA; No China parts! Gate driver for power MOSFETs  + IGBTs Does one thing, and does it very well: Turn MOSFETs and IGBTs hard ON, to attain their lowest specified Rds(on).  (good luck attaining it otherwise). Turns them ON FAST, and turns them OFF FAST. It will both source and sink current from MOSFET gates to provide fast switching. Supply of 4.5 to 18V,  2.0 Amp continuous output current.  9A peak charging current into capacitive loads. Takes a logic level as input ( 3 to 18V logic high state), and it switches high powers on output. Rise time: 180 ns into 47,000 pF capacitive load 30 ns into 4700pF capacitive load. Output impedance: 1.4 ohm Designed to reduce both conduction losses (by fully enhancing the channel), and switching losses (by reducing rise/fall times to their specified minimum) in all MOSFETS. Can be used to drive other loads: motors, transformers, horn speakers (very loud alarm), signal generators, anything that can handle square waves. Internally Schmitt-triggered logic states produce decisive switching even for slow rising signals. If you're driving MOSFETS any other way,  you end up  struggling with rise times and incomplete turn-on, and you're not achieving rated MOSFET performance. The TC4421 (inverting version of this part), is also available. Check our other auction listings for it, or contact us, if you need inverting driver.
Purchases can only be changed or cancelled before payment. Delivery dates provided by eBay are not guaranteed. Transit time can be 5-7 business days in USA after 1-2 day processing, however USPS does not guarantee these times, and can exceed them. If you have any time constraints, please contact seller before bidding / buying, to discuss shipping arrangements and delivery dates. PAYMENT CLOSES ORDER AND COMMITS IT FOR SHIPPING. Your shipping label is created and billed along with insurance the moment you click "PAY". Paypal and insurance charges are non-recoverable. No cancellation possible after payment. Any returns not resulting from seller wrongdoing will be assessed a restocking fee of 18% and will forfeit shipping costs. International transit times can reach 8 weeks, 10 weeks for Italy and Brazil. Contact seller for alternate shipping options if this is not acceptable to you. RETURNS can only be made with parts that have not been soldered. Before using, buyer must test one part as per the test information in the manufacturer's data sheet. This test is easy for any engineer or technician. This product is aimed at the industrial market. It is not a consumer product.

Returns Accepted for this item if it's within 30 Days
